Description
The Ravel 1720 MW fire provides a wider version of the 1500MW suitable for the larger sized TV.

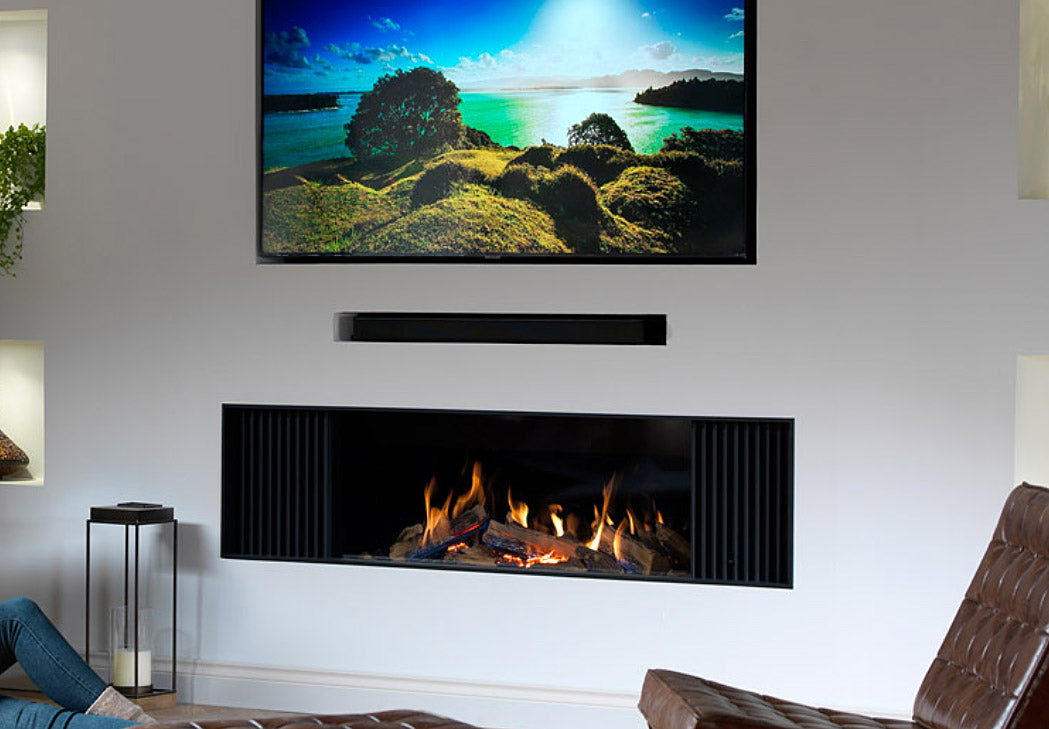

This balanced flue appliance will provide the heart to your media wall. With a massive heat output and an unrivalled flame picture, the fuel bed is intricately detailed to reveal the perfect log fire. A convection system forces cooler air through the side grills and up through side outlets at the top of the chimney breast, or through a stylish linear outlet above the television. The installation allows all the unsightly cables to be concealed whilst delivering a stylish and functional media wall to your home. Spot heating with a gas appliance is the most cost effective method to heat a room, allowing the central heating boiler to be turned off for longer periods…the Ravel 1720 Media Wall fire is a powerhouse of heat combined with ultra realism.
Dimensions
Dimensions
A) 1831mm
B) 667mm
C) 1538mm
D) 650mm
E) 1711mm
F) 407mm
G) 27-60mm
H) 120mm
I) 703mm
J) 13mm
K) 498mm
L) 355mm
M) 339mm
N) Ø116mm
O) 253mm
P) Ø230mm
Q) 535mm
R) 521-766mm
S) 1623mm
T) 1711mm
U) 104mm
V) 825mm
W) 260mm
Trim Dimensions
A) 1721mm
B) 415mm
